GJFJV Indoor Single Core Jumper Wire Optical Cable

GJFJV Indoor Single Core DESULTOR filum Optical Cable Description:

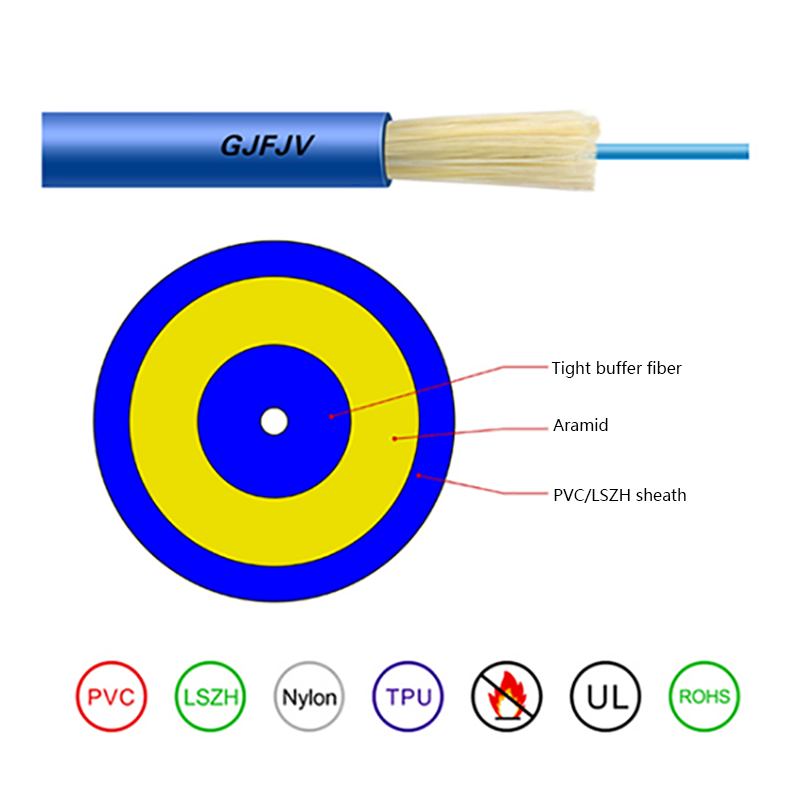

GJFJV Indoor Singulus Core DESULTOR Filum Opticalis Cable structura est multiplex fila fibrarum aramidis ad supplementum extra fibra optica stricta 900μm vel ф600µm emissa, ac deinde extrusio vaginae PVC (vel LSZH) exterioris.

Nobis loquere
  • GJFJV Indoor Single Core Jumper Wire Optical Cable
Depictio producti
Features

· Stricta fibra optica optica habet diametrum uniformem et bonam peeelability

·Bona flamma possessiones retardat

· Stabilis altus et humilis temperatus characteres

· Magnitudo geometrica bona fibri optici constantia


Applications

·data communication

· Optical iungo productio

· Modus ponendi: per murum, tectum, mezzaninum, aquaeductus, canalis filum

· Usus in adiunctis sine rigore waterproofing requisita

· Patch funiculi, pigtails et umbraticis wiring

· Modus ponendi: per murum, tectum, mezzaninum, aquaeductus, canalis filum


Signa Product

·GJFJV Indoor Single Core DESULTOR Wire Optical Cable in YD/T1258.2-2003, ICEA-596, GR-409, IEC794 aliaque signa significat; exigentiis occurrit UL certificationis OFNR et OFNP. .



structuram parametri

Funem optical exemplum

Cable Diameter Cable Pondus Stricta Sleeve Fiber Diameter
SXC-III 2.8±0.2mm 6.9kg/km 900±50μm
SXC-II 2.0±0.2mm 5.9kg/km 900±50μm
SXC-I 1.6±0.2mm 4.0kg/km 600±50µm

Mechanica mores

Patitur enim distrahentes fortitudo Patitur Cucurbitae Force Radius tendentes
diuturnum brevis terminus diuturnum brevis terminus trends status stabilis
80N 150N 100N/100mm 500N/100mm 20XD 10XD
60 120 100N/100mm 500N/100mm 20XD 10XD
50 100 100N/100mm 500N/100mm 20XD 10XD

Proprietatibus optical

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(20℃)

@850nm

≤3.0dB/km

≤3.0dB/km

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

--

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth

Class A）

@850

≥500MHZ·km

≥500MHZ·km

@1300

≥1000MHZ·km

≥600MHZ·km

Numeralis Apertura

0.200±0.015NA

0.275±0.015NA

Optical Cable Cutoff Necem

≤1260nm

≤1480nm

Environmental notae

Transportatio Temperature Repono Temperature Installation Temperature Operating Temperature
-20℃～﹢60℃ -20℃～﹢60℃ -5℃～﹢50℃ -20℃～﹢60℃
